Temporary Tundra Platinum wheels with subtle A/T’s for a trip

95YotaPickup

Member
🏆 GX of the Month
Apr 13, 2024
24
Media
18
38
Houston

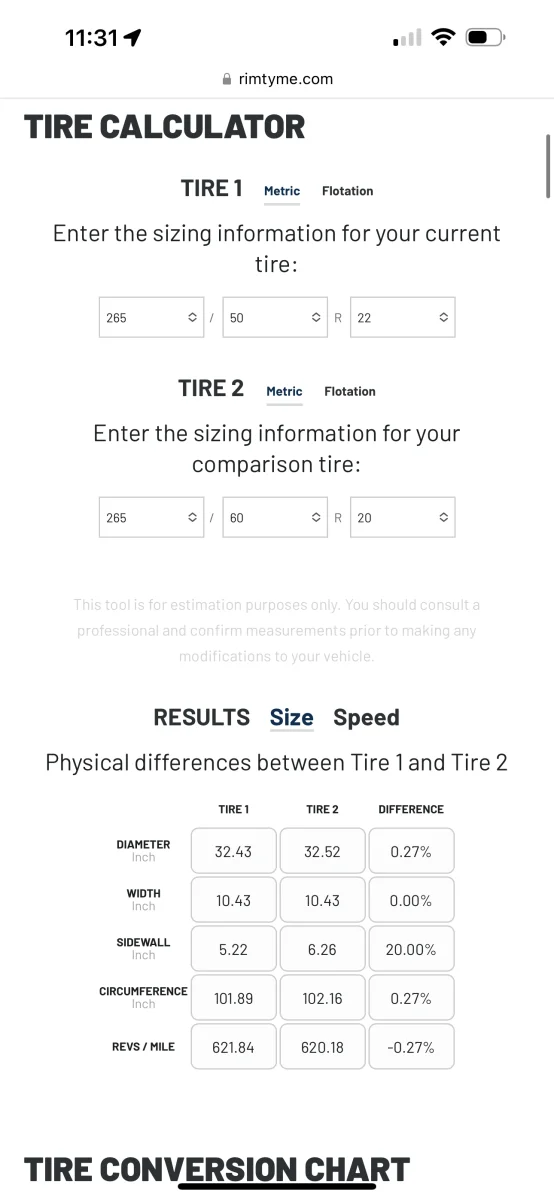

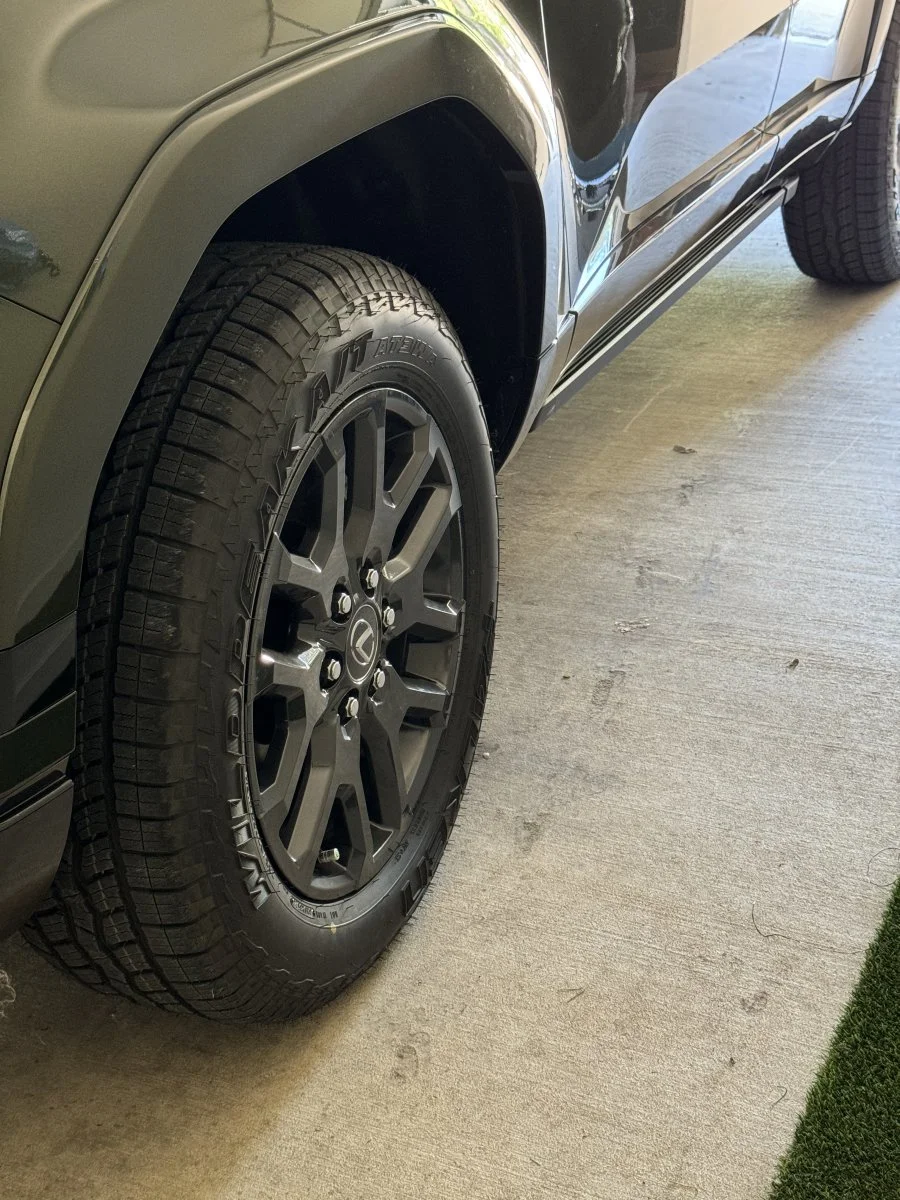

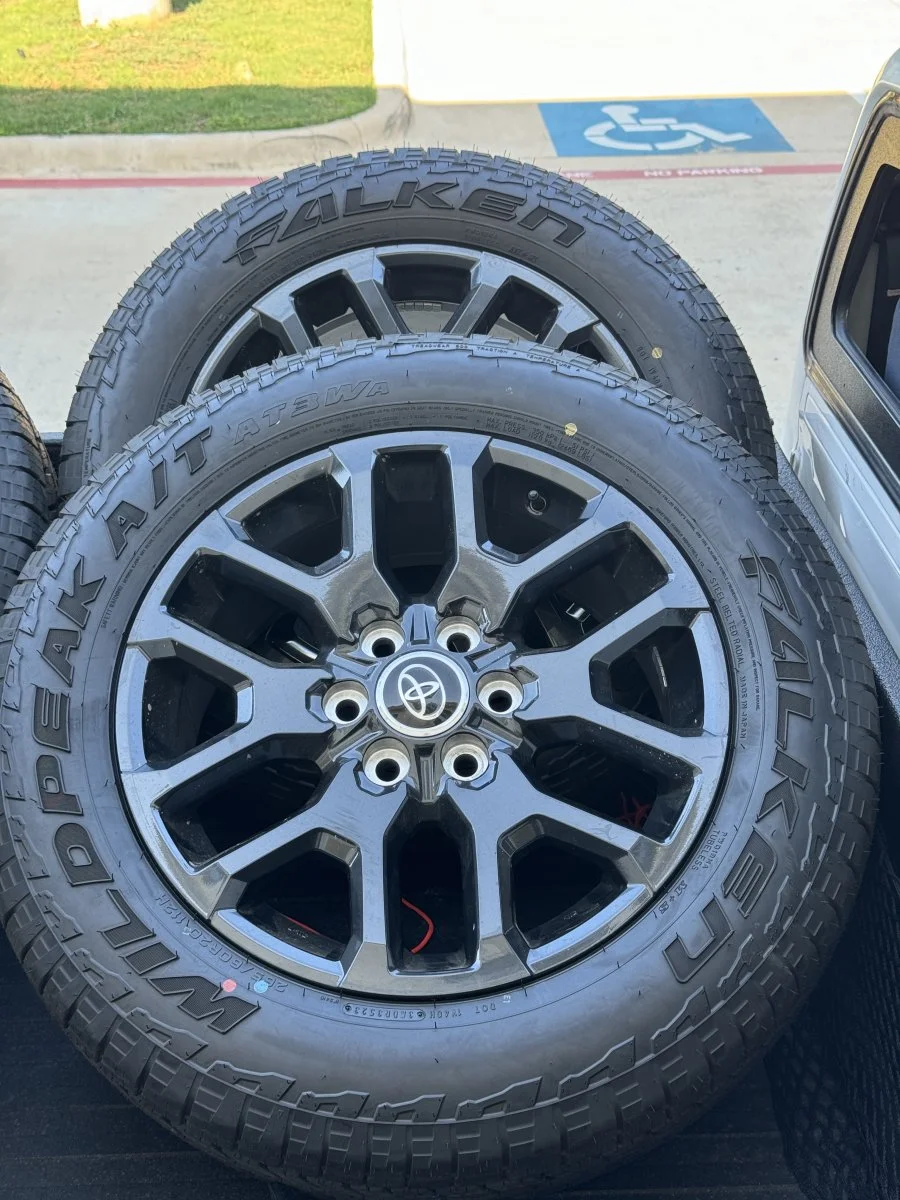

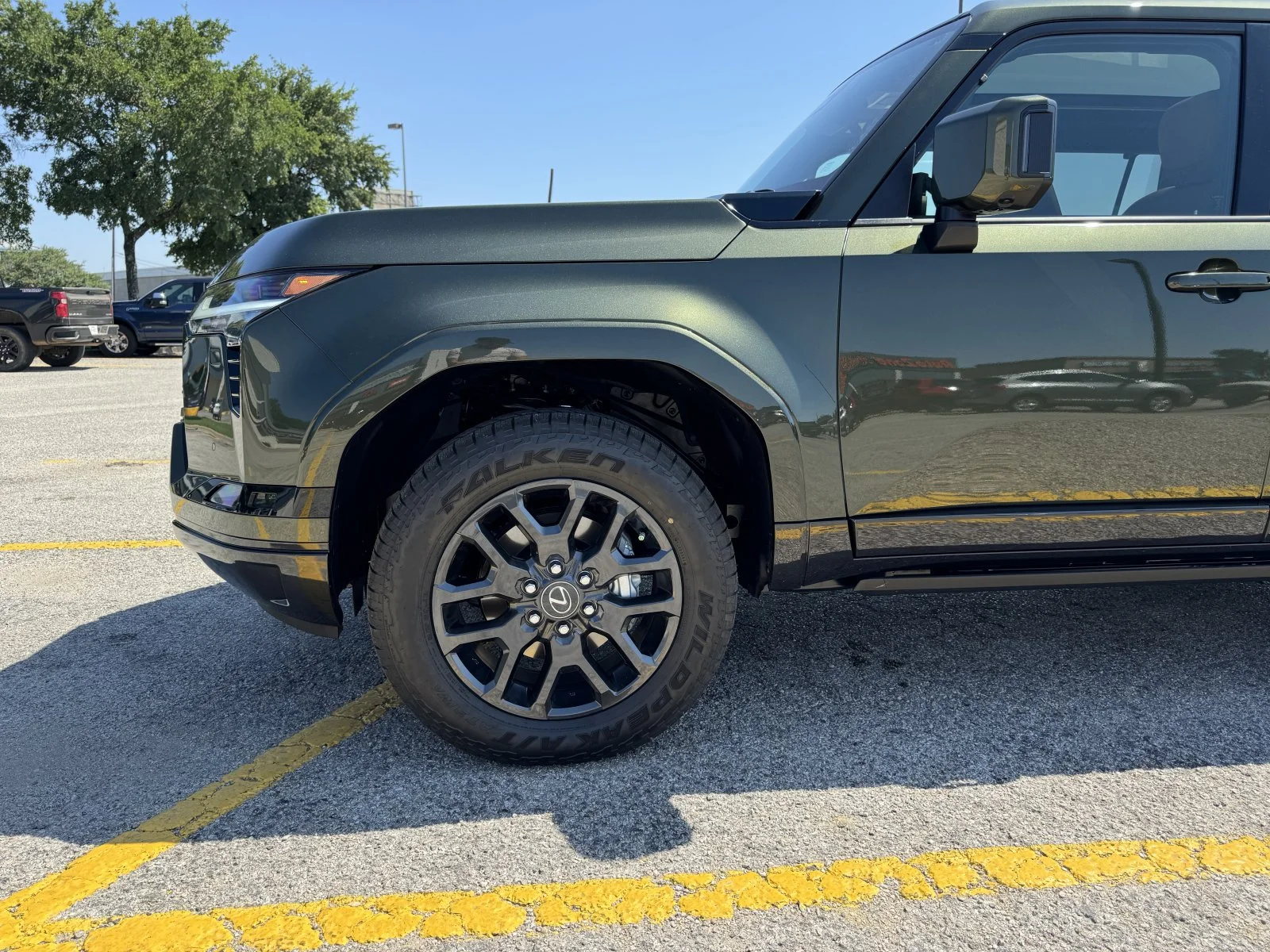

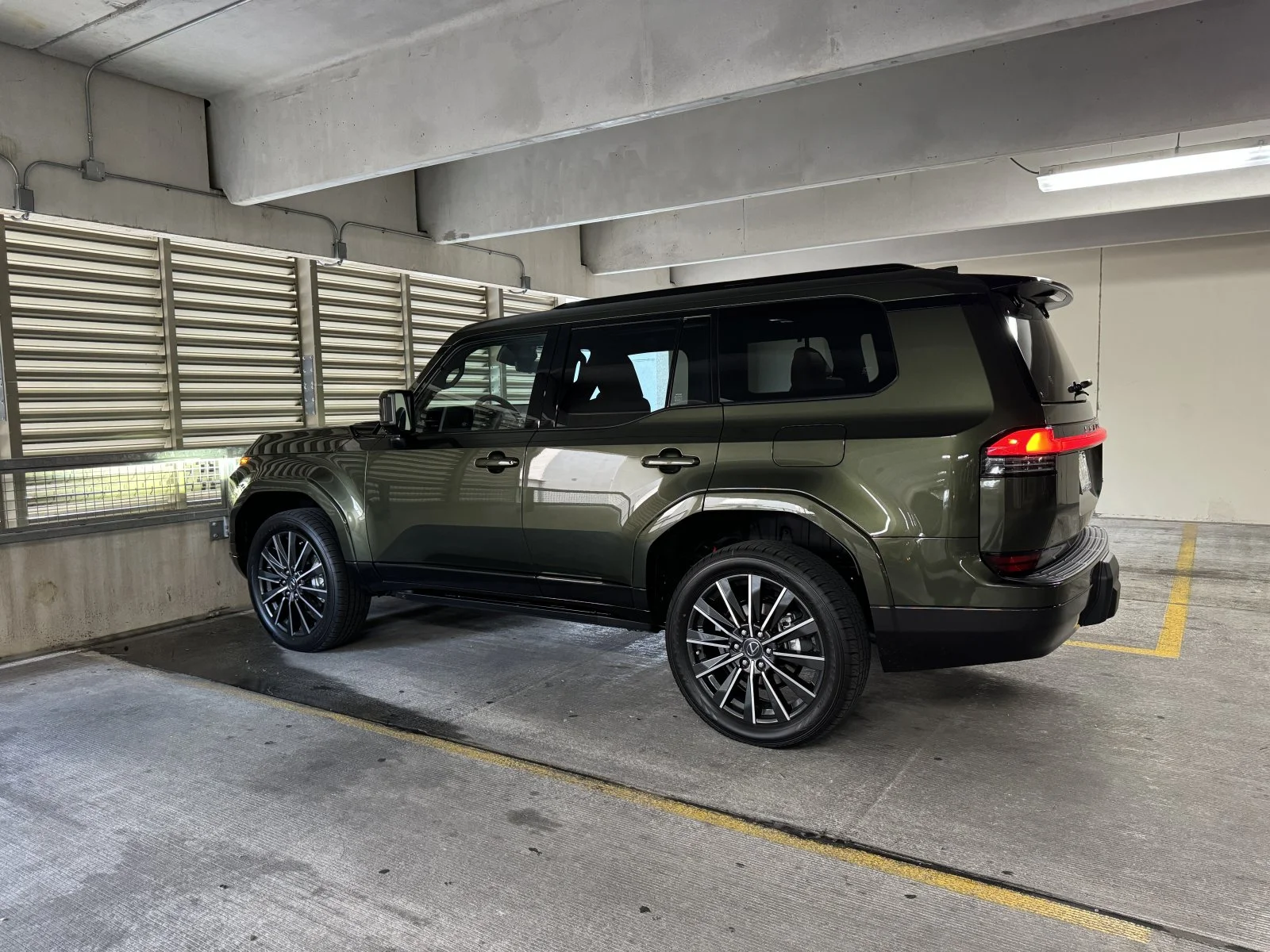

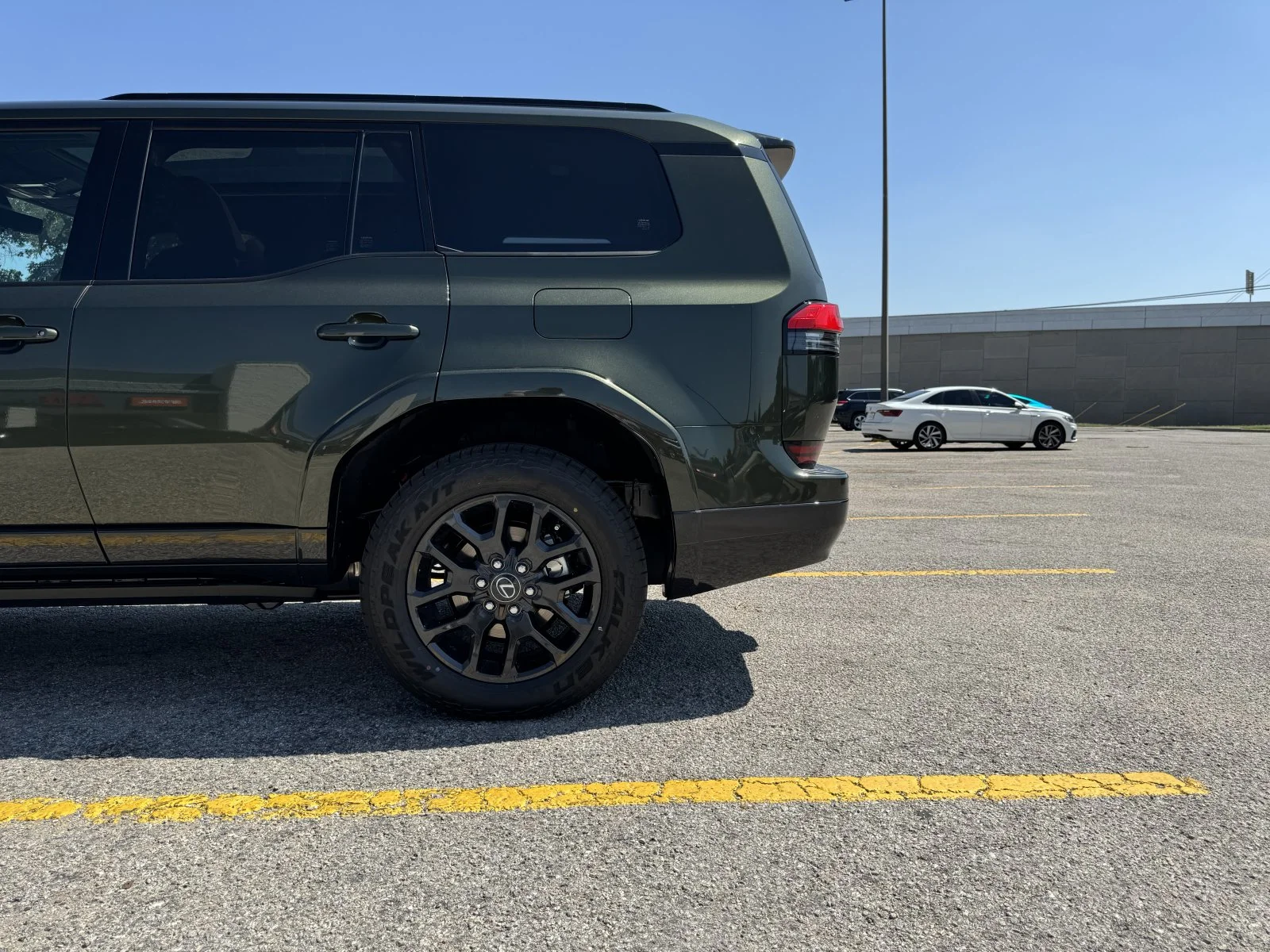

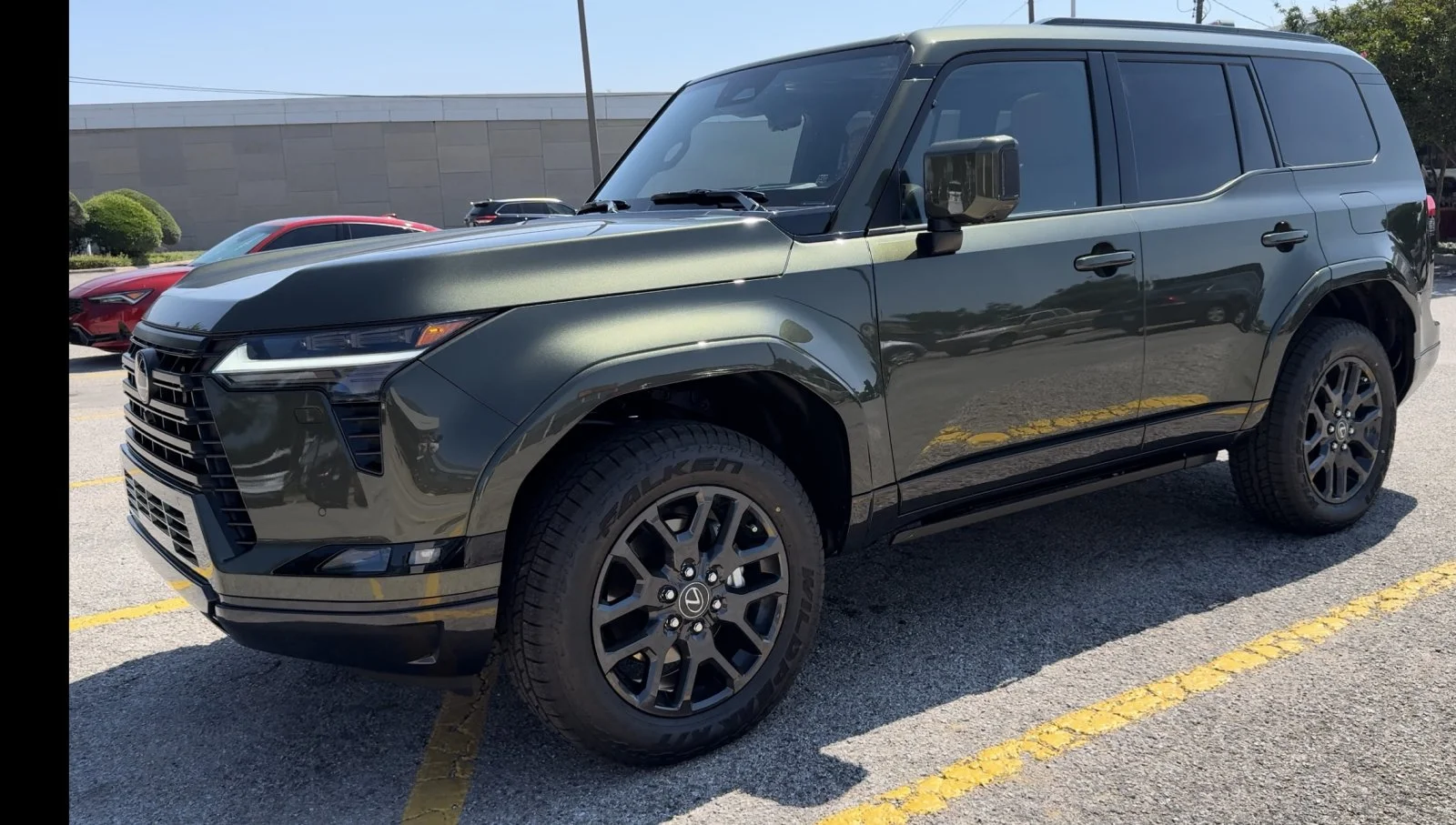

Going on a long trip this summer and still didn’t see any aftermarket wheels and tires to go with in time. So I put in some 2022+ Tundra Platinum Wheels because they were the only ones I really liked and actually matched up to the center hub cover color and gloss from Lexus, same with the tires I wanted some all terrains but KO2’s and ridge grapplers looked too rugged for the wheels and trim. I put on some wild peak AT3wa’s that are a tad bit more subtle. Went down from 22’s to 20’s so I can get 20% more sidewall and actually air down a bit off-road. I’m still keeping the stock tires and wheels until I figure out a permanent set. Just wanted to share with you all that are looking around different wheel options that aren’t too rugged looking nor too flashy. These seem pretty nice so far and I kept the same overall size and width to maintain stock drivability for now.
PS all 2022+ Tundra, 2024 Tacoma stock wheels fit with the 95mm bore size.
Hope the info I provided here is helpful.


Attachments

  • IMG_1806.jpeg
    406.4 KB · Views: 455
  • IMG_2205.png
    123.3 KB · Views: 349
  • IMG_2153.jpeg
    371.9 KB · Views: 296
  • IMG_2174.jpeg
    225.8 KB · Views: 310
  • IMG_2199.jpeg
    460.1 KB · Views: 332
  • IMG_2198.jpeg
    523.4 KB · Views: 372
  • IMG_2201.jpeg
    356.1 KB · Views: 345
  • IMG_2202.jpeg
    256.8 KB · Views: 343
  • IMG_2203.jpeg
    221.7 KB · Views: 328
  • IMG_2204.jpeg
    284.6 KB · Views: 365
Good idea Yota. Taking your lead I might be able to find 18's from the 2022 and up Tundra. I have wheels in great shape that are 18's to use Michelin. I will start looking around but will need adapters for the five lug wheels I have or find the 6 hole 18's to buy. FIRST I need a GX!

Going on a long trip this summer and still didn’t see any aftermarket wheels and tires to go with in time. So I put in some 2022+ Tundra Platinum Wheels because they were the only ones I really liked and actually matched up to the center hub cover color and gloss from Lexus, same with the tires I wanted some all terrains but KO2’s and ridge grapplers looked too rugged for the wheels and trim. I put on some wild peak AT3wa’s that are a tad bit more subtle. Went down from 22’s to 20’s so I can get 20% more sidewall and actually air down a bit off-road. I’m still keeping the stock tires and wheels until I figure out a permanent set. Just wanted to share with you all that are looking around different wheel options that aren’t too rugged looking nor too flashy. These seem pretty nice so far and I kept the same overall size and width to maintain stock drivability for now.
PS all 2022+ Tundra, 2024 Tacoma stock wheels fit with the 95mm bore size.
Hope the info I provided here is helpful.
Dude! Looks so good.

And man I wish that leather interior was available on the OT+.

PLease do share pics and fitments as soon as you install

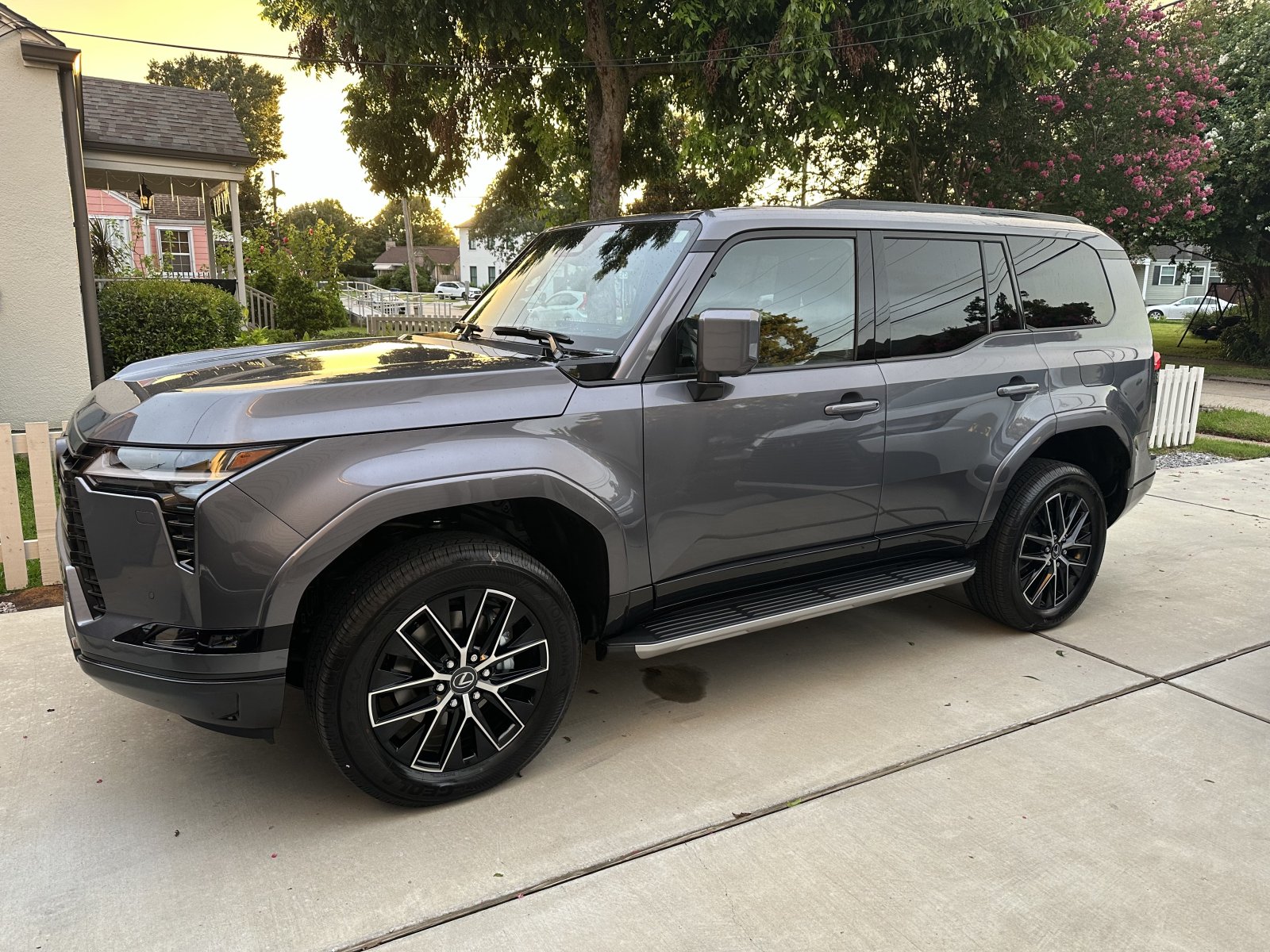

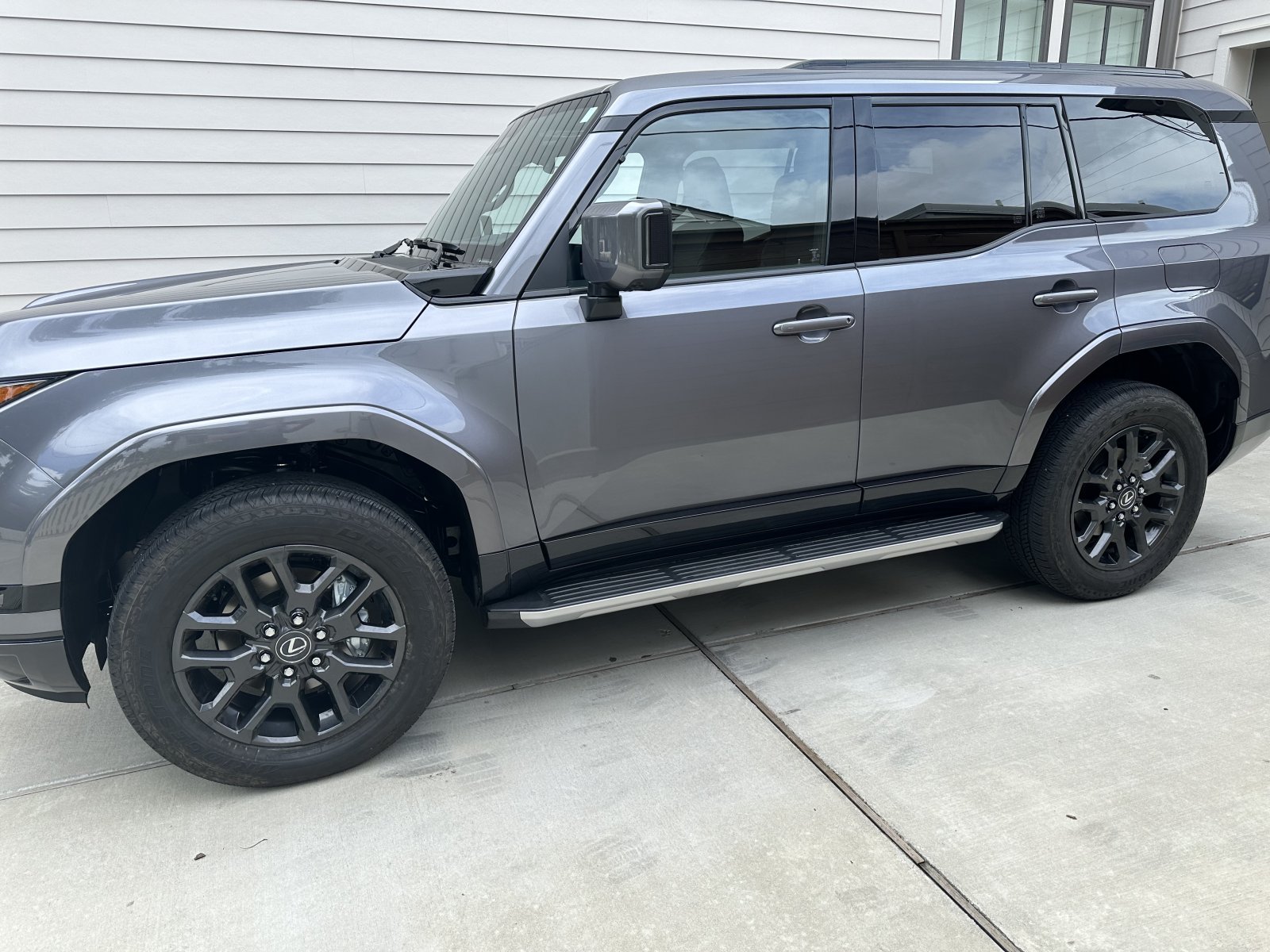

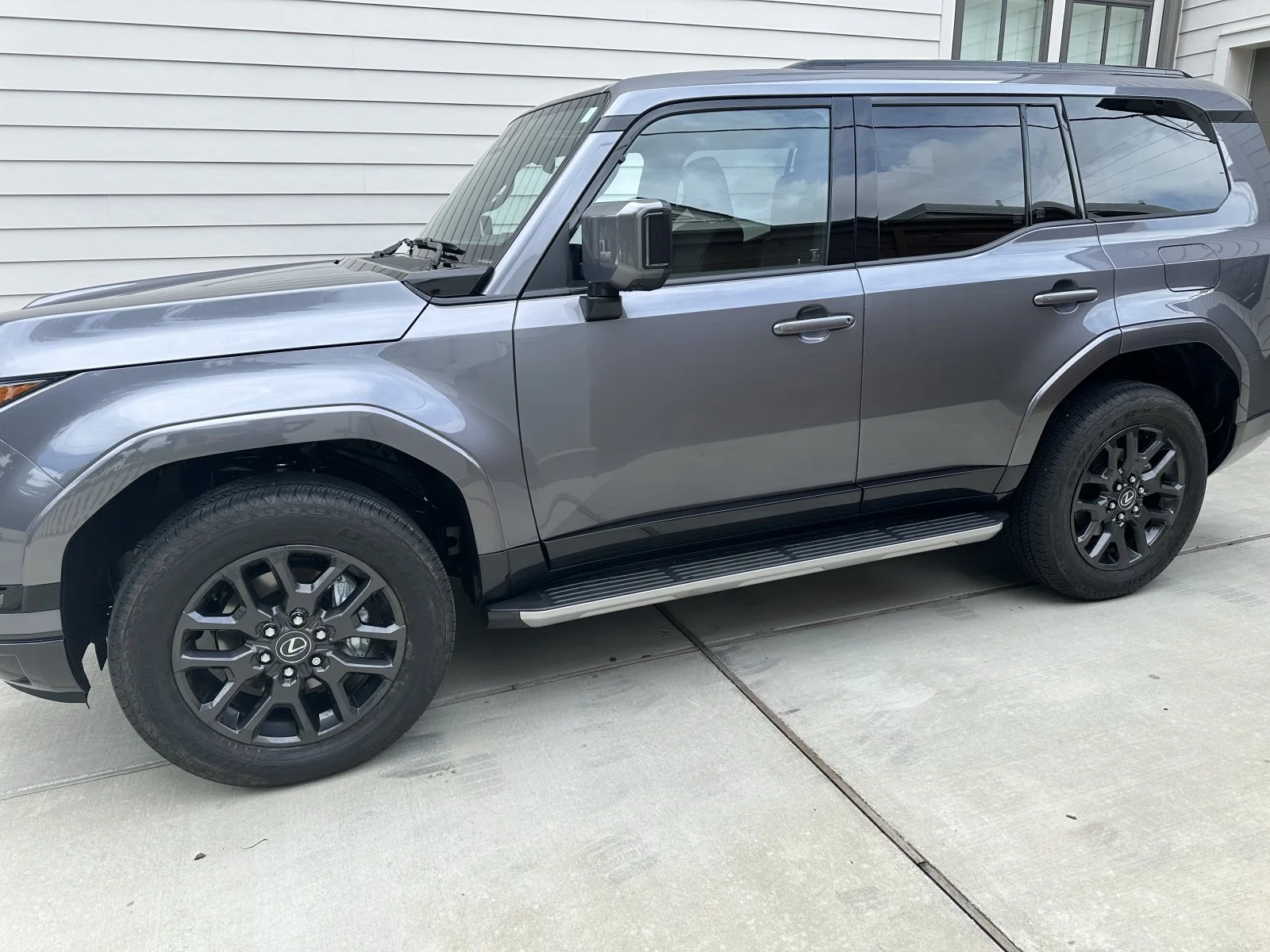

before and after

Edited:
Fitment -
265/60R20
Going from +50 offset to +60 makes things tighter on the front. Any wider tires and you need to start looking at clearance to the upper control arm. Also, the clearance between the back face of the wheel is damn close to the brake caliper. It doesn’t touch. I’ll try to grab a measurement today.

Last edited:
View attachment 1936
View attachment 1935

before and after

Edited:
Fitment -
265/60R20
Going from +50 offset to +60 makes things tighter on the front. Any wider tires and you need to start looking at clearance to the upper control arm. Also, the clearance between the back face of the wheel is damn close to the brake caliper. It doesn’t touch. I’ll try to grab a measurement today.
Also looking at eventually going to 275/60/20 so would be helpful if you are getting that measurement info

Also looking at eventually going to 275/60/20 so would be helpful if you are getting that measurement info
I think the calipers have more clearance than I thought. I am measuring ~.25”/6mm.

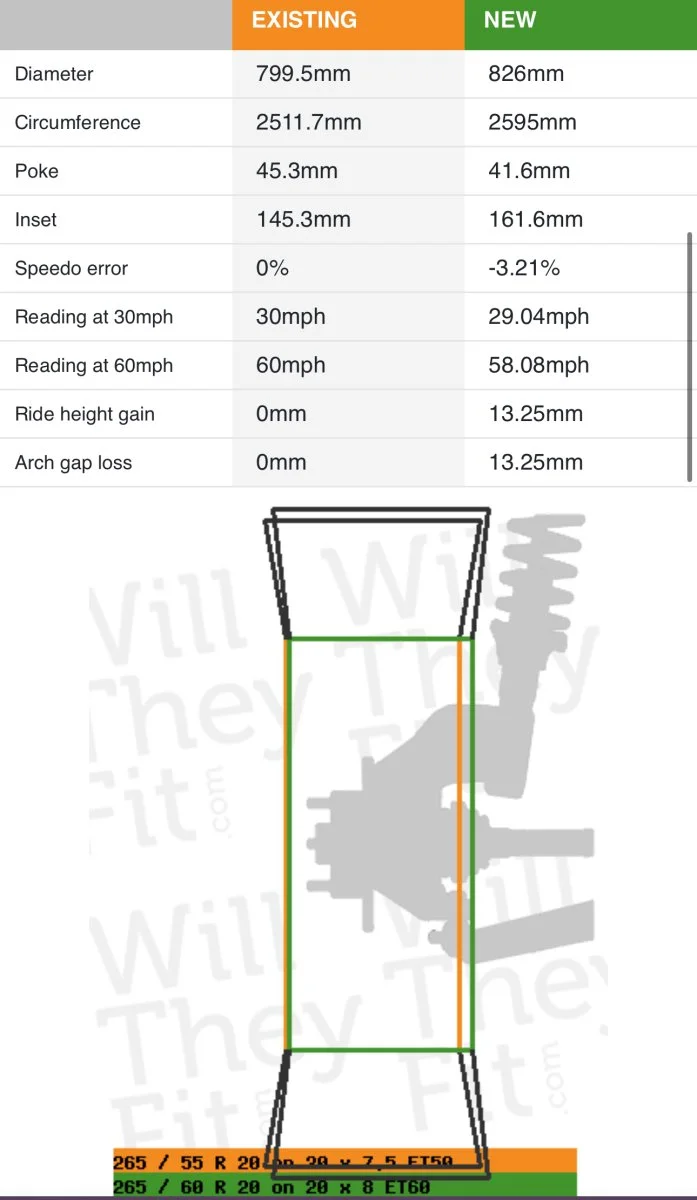

Using willtheyfit.com, this is the comparison of stock to the tundra wheels.



This helps demonstrate that the poke is just about the same, but it sits further inboard.

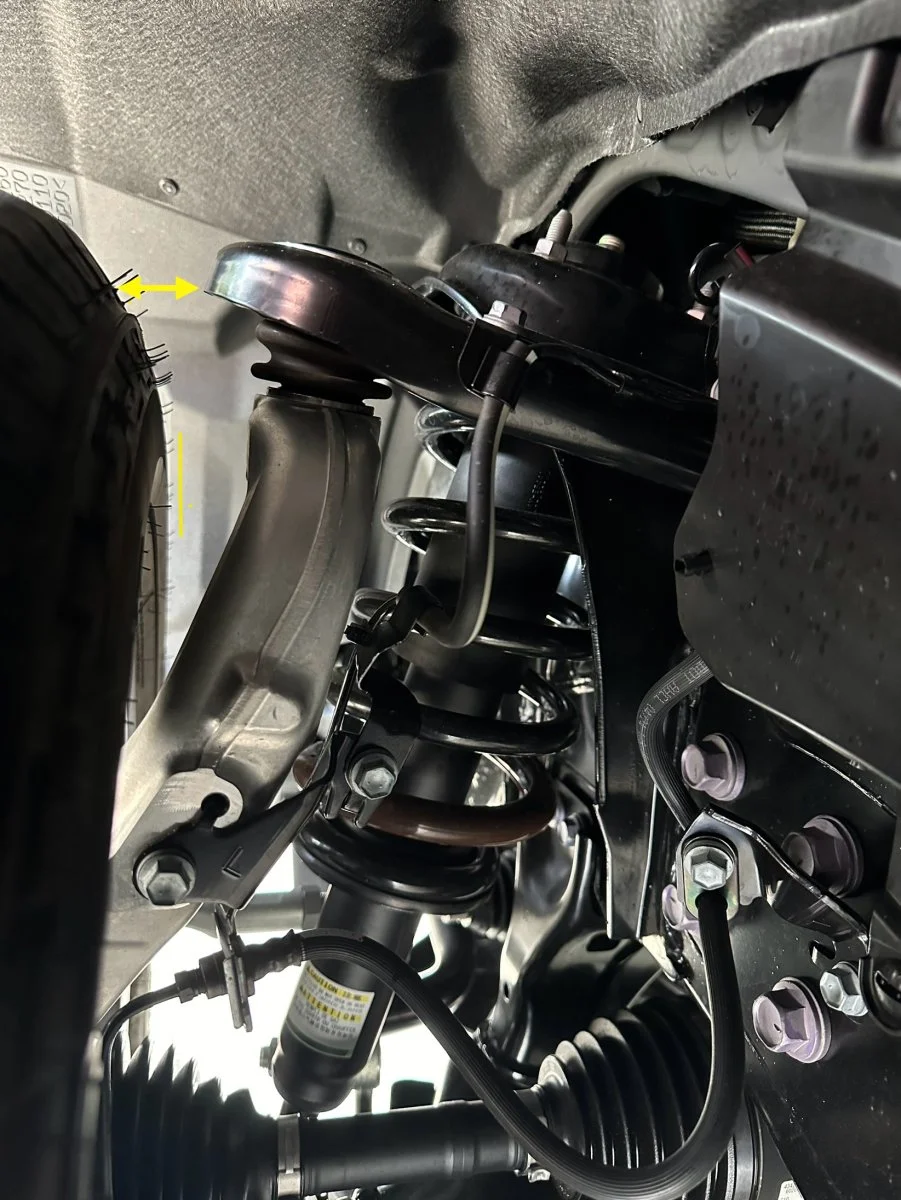

I come up with ~3/4” or 20mm clearance between the tire and upper control arm, but it’s not a simple point a to point b measurement:


Going on a long trip this summer and still didn’t see any aftermarket wheels and tires to go with in time. So I put in some 2022+ Tundra Platinum Wheels because they were the only ones I really liked and actually matched up to the center hub cover color and gloss from Lexus, same with the tires I wanted some all terrains but KO2’s and ridge grapplers looked too rugged for the wheels and trim. I put on some wild peak AT3wa’s that are a tad bit more subtle. Went down from 22’s to 20’s so I can get 20% more sidewall and actually air down a bit off-road. I’m still keeping the stock tires and wheels until I figure out a permanent set. Just wanted to share with you all that are looking around different wheel options that aren’t too rugged looking nor too flashy. These seem pretty nice so far and I kept the same overall size and width to maintain stock drivability for now.
PS all 2022+ Tundra, 2024 Tacoma stock wheels fit with the 95mm bore size.
Hope the info I provided here is helpful.
Do the tires that came on premium + fit the tundra wheels?
