Service, Maintenance, & Parts Manuals (Online PDFs)? (1 Viewer)

[CG1]

Does anyone have links to service, maintenance, and parts manuals for the '24 GX550's?

TIA



[m(a)ce]

Here’s the Warranty and Service Guide


*I can also post link to another site but not sure if that’s ok with the moderators



[CG1]

Thanks Mace! Does your "link" happen to have the service, maintenance, and parts manuals? If so, I'll PM you my email.



[m(a)ce]

Thanks Mace! Does your "link" happen to have the service, maintenance, and parts manuals? If so, I'll PM you my email.

You’re welcome!

link is same info as above with service/warranty.

haven’t found a parts manual yet



[Gunner]

Here’s the Warranty and Service Guide


*I can also post link to another site but not sure if that’s ok with the moderators

Thank you!



[blakebearden78]

I am surprised that Lexus states no service internal for replacement of the transmission filter and oil. They reference at the end of the manual it is a sealed unit requiring no regular service but I know better than to drive it beyond 75-100K miles without servicing with new fluid/filter. No dipstick for the trans either, not a huge fan of that. Going the route of the Germans which leads to potentially expensive repairs in the future.



[ianmcall]

Odd 550 parts aren't available through lexus yet. Anyone know why?

Shop Lexus GX Parts and Accessories Online

Shop the official online catalog of genuine GX Lexus Parts and Accessories. Select year, make, and model, review parts diagrams, and check pricing at Lexus dealers across the entire U.S. dealer network.

parts.lexus.com



[gvan1998]

I wa told , its too new that's why you cant find any accessories online



[naladar]

I am surprised that Lexus states no service internal for replacement of the transmission filter and oil. They reference at the end of the manual it is a sealed unit requiring no regular service but I know better than to drive it beyond 75-100K miles without servicing with new fluid/filter. No dipstick for the trans either, not a huge fan of that. Going the route of the Germans which leads to potentially expensive repairs in the future.

I concur. I do not like the fact it doesn't have a dipstick for that! Traded in a chevy silverado LTZ for my GX 550 and chevy had done the same thing. No dipstick for the transmission. About two months ago it a hose blow off the transmission coolant line assembly, no warning lights, no dashboard notifications, nothing... if I hadn't formed a habit of checking under the vehicle regularly (I'm an old man) then I may have not ever noticed until there was major damage. Glad to be in a GX, but I do miss having a dipstick!



[ianmcall]

Not in the manual nor has Lexus Part page updated. Do I have have the right part numbers for regular maintenance? Any help filling in the blank?

Oil: 8qts 0W20 00279-0WQTE-01
Oil Filter: 90915-10010
Oil Drain Plug Gasket: 90430-12031
Cabin Air Filter: ?
Engine Air Filter: 17801-YZZ17



[Cajun Heat]

Plan on installing one of these for ease of draining the oil. Have them on my other vehicles and they are awesome.

F133N: Long Nipple Oil Drain Valve With M12-1.25

These valves have 15mm hose nipples in length. We recommend using these valves on industrial engines and vehicles with high ground clearance. *NOT RECOMMENDED FOR VEHICLES WITH LOW GROUND CLEARANCE.

www.fumotousa.com



[Warrantero]

Oil filter is good, same as new tundra’s,



[Jrox]

Not in the manual nor has Lexus Part page updated. Do I have have the right part numbers for regular maintenance? Any help filling in the blank?

Oil: 8qts 0W20 00279-0WQTE-01
Oil Filter: 90915-10010
Oil Drain Plug Gasket: 90430-12031
Cabin Air Filter: ?
Engine Air Filter: 17801-YZZ17

Does Toyota use fully synthetic 0W-20 oil in the engine from factory?



[ianmcall]

Does Toyota use fully synthetic 0W-20 oil in the engine from factory?

Yes, 00279-0WQTE-01 is full synthetic

0W20 Motor Oil - Genuine Toyota - One Quart



[DJ’s Sled]

Plan on installing one of these for ease of draining the oil. Have them on my other vehicles and they are awesome.

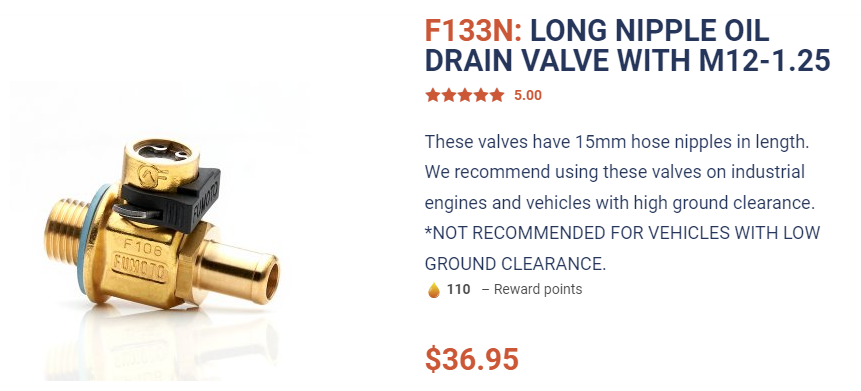

View attachment 1573

F133N: Long Nipple Oil Drain Valve With M12-1.25

These valves have 15mm hose nipples in length. We recommend using these valves on industrial engines and vehicles with high ground clearance. *NOT RECOMMENDED FOR VEHICLES WITH LOW GROUND CLEARANCE.

www.fumotousa.com

Hey Cajun Heat,
Thanks for posting that oil valve info..
Did you go ahead and install it?
If your GX has a front skid plate?,..is the valve hidden up underneath the skid plate? Can you reach the valve handle without sliding the skid plate out of the way?
Do you need, or are you using a short length of vinyl hose?
Thanks a lot!
Don (Big Easy ‘69 to ‘73).



[Cajun Heat]

Hey Cajun Heat,
Thanks for posting that oil valve info..
Did you go ahead and install it?
If your GX has a front skid plate?,..is the valve hidden up underneath the skid plate? Can you reach the valve handle without sliding the skid plate out of the way?
Do you need, or are you using a short length of vinyl hose?
Thanks a lot!
Don (Big Easy ‘69 to ‘73).

Hey Don,

Unfortunately we are still waiting to get our GX so can't offer anything further until we get it in June.



[DJ’s Sled]

Hey Don,

Unfortunately we are still waiting to get our GX so can't offer anything further until we get it in June.
